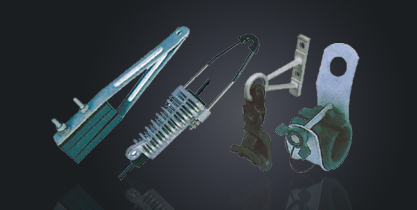

TNXJ SERIES FOUR-CORES-CENTRALIED STRAIN CLAMP

TNXJ SERIES INSULATION STRAIN CLAMP(WEDGE TYPE)

TXJG SERIES SUSPENSION CLAMPS

TNXJ SERIES FOUR-CORES-CENTRALIED STRAIN CLAMP
TNXJ  four - core - centralized  strain clamp is suitable for  the  end of  aerial wire terminal, it action  is  fixing  or  tightening  the  insulation conductor.  The clamp has ben designed four core parallel groove, after clamping  the  four insulation conductor (not remove the insulation layer) tighten  up  the  bolt  to  have large grip  strength.

CLAMP(WEDGE TYPE)
TNXJ series is suitable for strain clamp insulationstring of 10kv aerial insulation aluminium corewire JKLYJ terminal or two ends fixing and fightenaerial insulation.

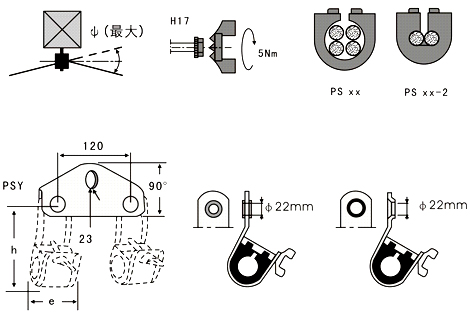

TXJG SERIES SUSPENSION CLAMPS
TXJG Series is suitable for aerial electric wire suspension insulation conductor, it provides steel and aluminium manufacture for users.

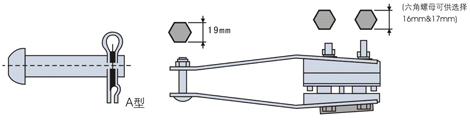

TNXJ SERIES INSULATION STRAIN CLAMP(WEDGE TYPE)
1.The shell made of anti-oxidate high strength aluminium alloy,Without waste power
2.The core of wedge made of insulating reinforce plastics,withstand voltage:18KV not break-down one min
3.Not need to remove the insulation layer,Al-core wire can be used directly.
4.Wedge strucure
